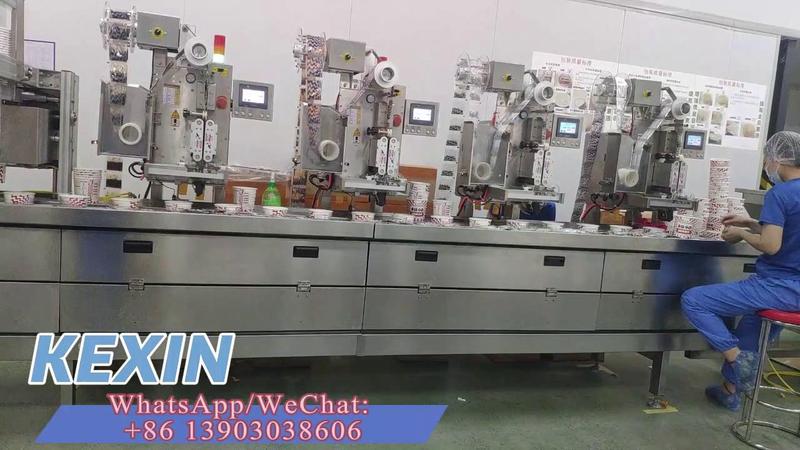

High speed Pouch Dispenser TBJ240B is particularly suitable for online placement of back-sealing and large material packages.

Specification:

    Max Capacity: 240 pcs/min

    Test Sensor: Ultrasonic

    Size for sachet:

Length: 30~120mm

Width: 40~90mm

Thickness: 2~15mm

    Power: 220V AC Single-phase 50/60HZ   1KW

    Air pressure: 0.2Mpa, air consumption: 0

    Overall dimension: 750(L)×700(W)×1700(H)mm

Application:

    Automatically cutting and dispensing for the linked bags of food, commodity, chemical industry, medicine etc.

Features:

Efficiency:Automatically fit difference sachet, Automatically feeding, cutting and dispensing, max capability 240 pouches per minute;

Convenience: Easy to operate and maintain, Just press Feed & Start the dispenser will work automatically;

Stability: Detecting by ultrasonic, driving by dual-servo motor, Assured accurately cutting off and accurately dispensing;

Health: Machine feeding to avoid touch food by hand, complied with hygiene requirements.

Wide Use: Suit for 3 side seal and 4 side seal and back seal sachets, and weight is over 15gm sachet.

Main Material: SUS304
