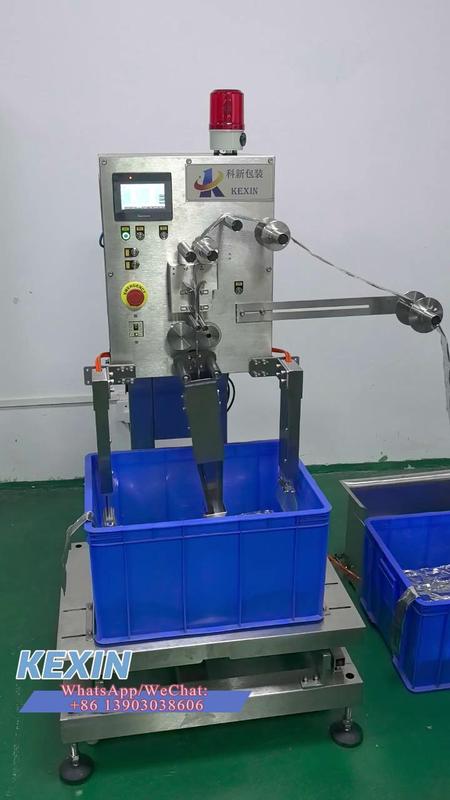

DDBX280P is an intelligent and high-speed Pouch Layer Sachet Loader machine. The machine head can be raised and lowered. The pressure feeding device s at both ends enable the bags to be stacked more neatly.

Specification:

    Max Capacity: 280 pcs/min

    Size for sachet:

Length: 30~120mm

Width: 30~100mm

Thickness: 2~15mm

    Power: 220V AC single-phase 50/60HZ 1.2KW

    Overall dimension: 930(L)×780(W)×1650(H)mm

Application:

    Automatically arraying, laying the powder bags, oil bags, vegetable bags etc from output of hi-speed sachet packaging machine. It’s a corollary equipment of automatic pouch dispenser.

Features:

Efficiency: Automatically arraying, laying and feeding the sachets, max capability 280 pouches per minute.

Stack Neatly: The machine head can be raised and lowered, and there are press pack device on both sides to ensure that the stack is neat

Wide Application: Easy adjust to meet difference sachet, and put sachet in order.

Health: Machine laying to avoid touch food by hand, complied with hygiene requirements.

Size for Box: L:450－600mm，W:350－450mm，H:200－400mm.

Main Material: SUS304
